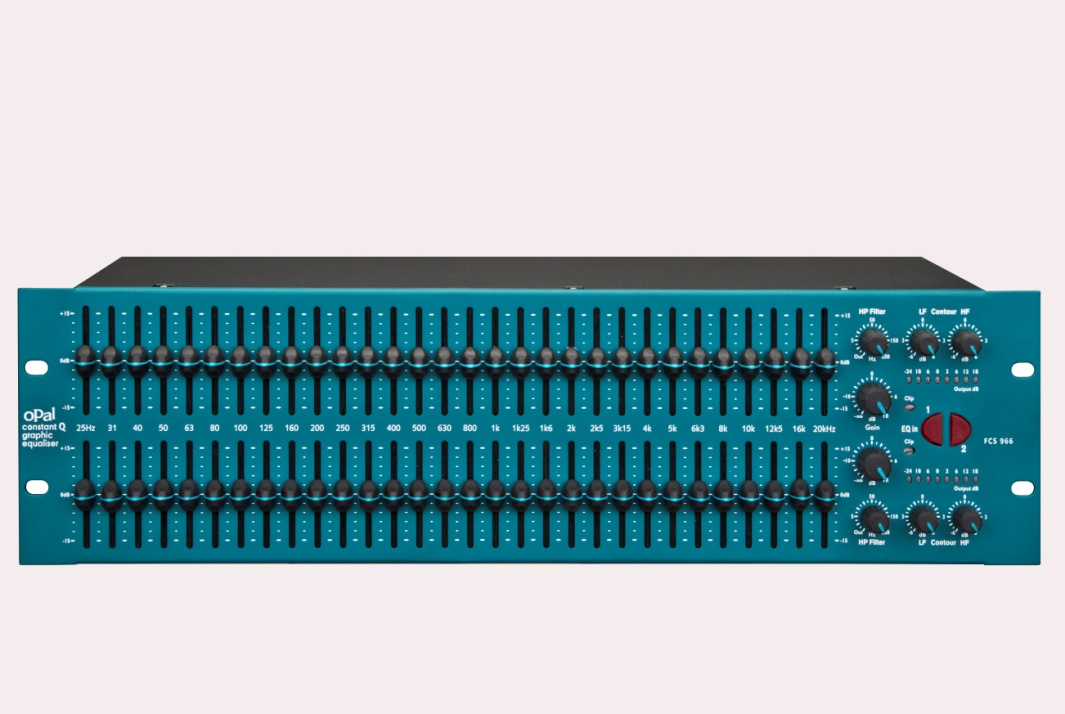

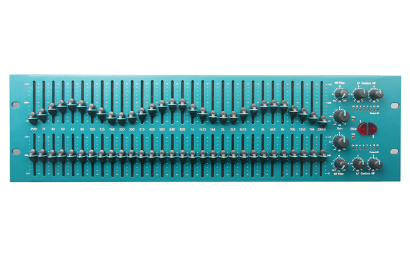

FCS966 Equalizer
Detailed content:
Q-value 4; Constant gain/attenuation: 15dB
Input impedance: 10k Ω balanced
Output impedance:<50k Ω balanced
CMRR:> -40dB@1KHz
Maximum input level:+20dBu (balanced or unbalanced)
Maximum output level:+20dBu (balanced or unbalanced) 600 Ω
Maximum output level indicator light: -24dB -18dB
Pusher input level control:+/-15dB
Gain control per channel: - ∞ -+10 dB
Each channel has a clipping indicator light
High pass filtering: OUT -250 Hz
Low frequency control:+/-6 dB? 50 Hz?? 6 dB/octave
High frequency control:+/-6 dB? 14KHz? 6 dB/octave
Total harmonic distortion: 0.005% @ 1kHz? 20Hz-20kHz
Signal to noise ratio: greater than 90dB (ref.0.775Vrms)
Noise: -94dBu, 22Hz --22KHz
Crosstalk:>-80dB @ 1KHz
Distortion: ＜ 0.005% THD20Hz -20KHz
Impedance balanced 1/4 "input and balanced XLR input/output
Electronic switches: ln/Out and Filter (FET type)
Dynamic range:>115dB
Frequency response: 20Hz to 20kHz,+0/-1dB
Power supply: 115/230V AC, 50/60Hz, 30VA
Recommended working level: -10dBu to+4dBu
