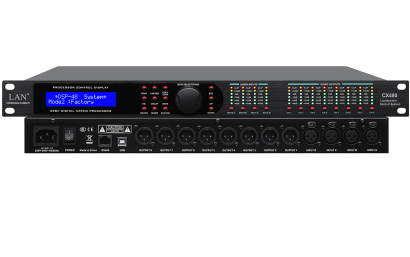

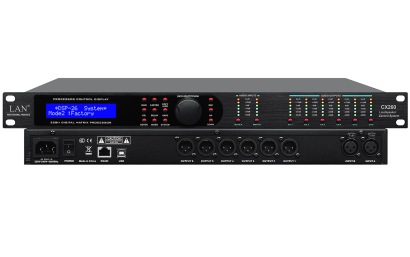

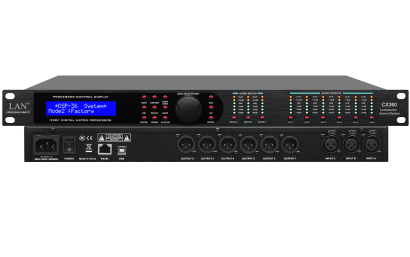

CX260 CX360 CX480

Features(产品特征)：

● 本产品采用高性能32BitDSP，采用48kHz采样率，32-bitAD/DA转换，具有频带宽、动态大、失真少等特点;

● This product uses high-performance 32BitDSP, 48kHz sampling rate, 32-bitADC/DAC conversion, with characteristics of bandwidth, large dynamic and less distortion.;

● 本系列包含2进6出、3进6出和4进8出多种型号可选择，可灵活组合各类型音频系统;

● This series includes multiple models to choose from, including 2-in 6-out, 3-in 6-out, and 4-in 8-out, allowing for flexible combination of various types of audio systems;

● 输入处理部分包含3个DEQ，29个GEQ，增益，静音，相位，延时，压缩器，反馈抑制等处理功能;

● The input processing section includes 3 bands of Dynamic EQ, 29 Band Graphic EQ, Gain, Mute, Phase, Delay, Compressor, Feedback suppression, and other processing functions;

● 输出处理部分包含IIR分频滤波器，9个参量均衡，增益，静音，限幅器，相位，延时，连动调节等处理单元;

● The output processing section includes an IIR frequency divider filter, 9 parameter equalization, Gain, Mute, Limiter, Phase, Delay, Linkage adjustment, and other processing units;

● 所有输出通道的PEQ的增益、带宽、频率连续可调，类型可选择: 参量均衡、低架滤波、高架滤波;

● The gain, bandwidth, and frequency of PEQ for all output channels are continuously adjustable, and the types can be selected: parameter equalization, low frame filtering, and elevated filtering;

● 所有输入通道DEQ的增益、频率、动态处理的阀值连续可调;

● The gain, frequency, and dynamic processing thresholds of all input channel Dynamic EQ are continuously adjustable;

● IIR分频滤波器的类型可选择：巴特沃斯、宁克、贝塞尔，斜率在-12dB/Oct至-48dB/Oct可选;

● The types of IIR frequency division filters can be selected: Butterworth, Link Riley, Bessel, with slopes ranging from -12dB/Oct to -48dB/Oct;

● 输出通道的压缩器阀值、比率、启动时间、恢复时间连续可调。而且输出带独立的峰值限幅器功能，阀值、启动时间、恢复时间都连续可调;

● The compressor threshold, ratio, start time, and recovery time of the output channel are continuously adjustable. And the output has an independent peak limiter function, with continuously adjustable threshold, start time, and recovery time;

● 前面板带有LCD液晶显示，常用功能键。后面板有USB接口，RS485接口可连接第三方中央控制系统，最多连接41台设备;

● The front panel is equipped with an LCD display and commonly used function keys. The rear panel has a USB interface, and the RS485 interface c
